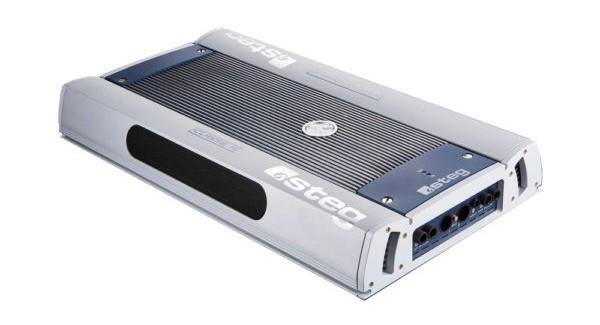

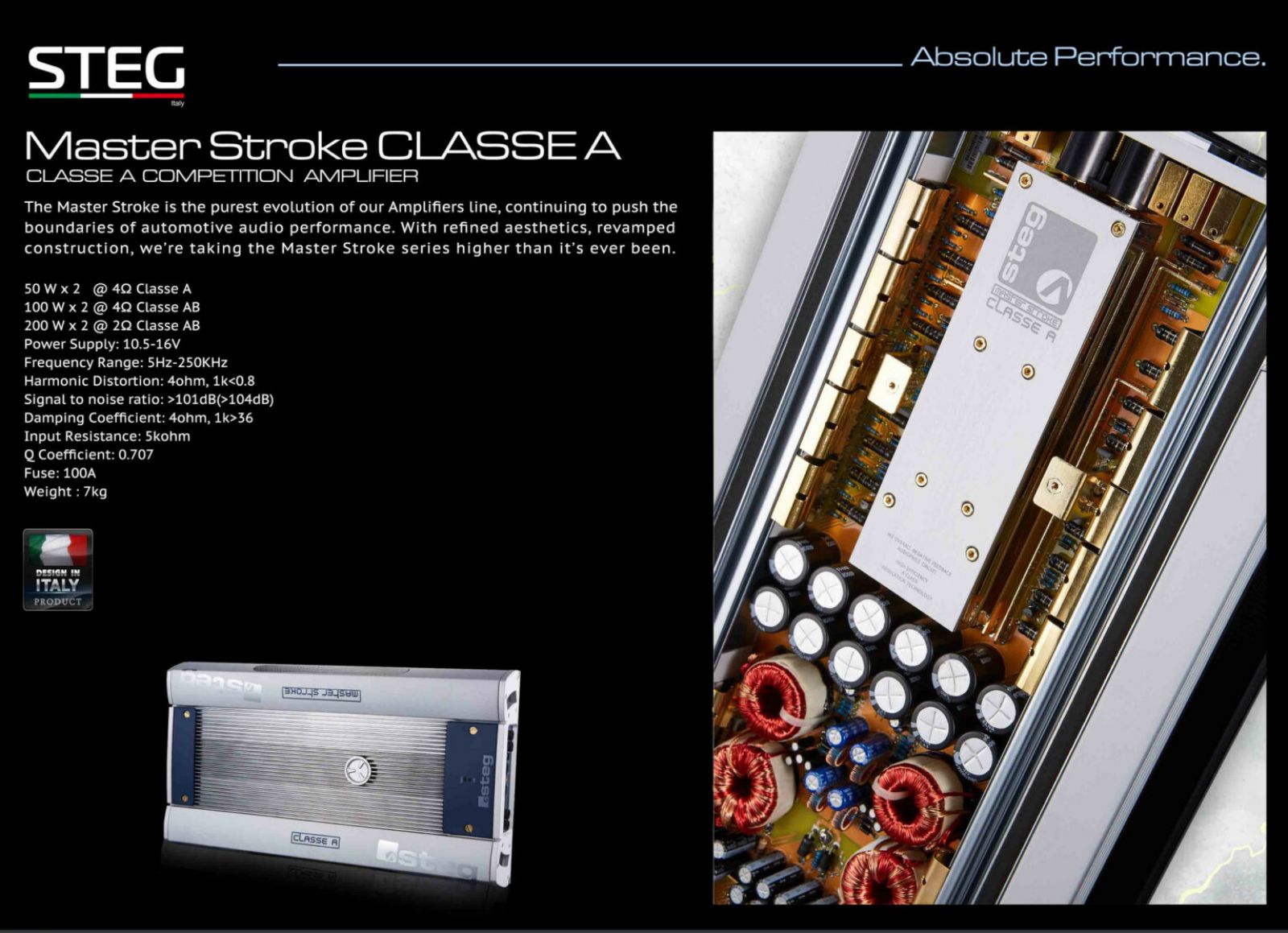

Master Stroke CLASSE A
.jpg)
Specifications:
Class: A – AB
Channels: 2
Power RMS @ 14,4 V:
– 2x 100W (4Ω)
– 1x 200W (2Ω)
Amp is working as A class until 50W RMS. Then it turns into class AB
Input sensitivity: 400mV ÷ 5.5V
Frequency response: 5 Hz až 250 kHz (-3 dB @ 1 W)
Harmonic distortion (THD): <0,8%
Intermodulated distortion (DIM): <0,12%
Input Voltage: 10.5 – 16 V DC
Signal to Noise ratio: > 101 dB
The least recommended impedance: 2 ohmy
Recommended fuse size: 100A (extern)
